Ball
Valves

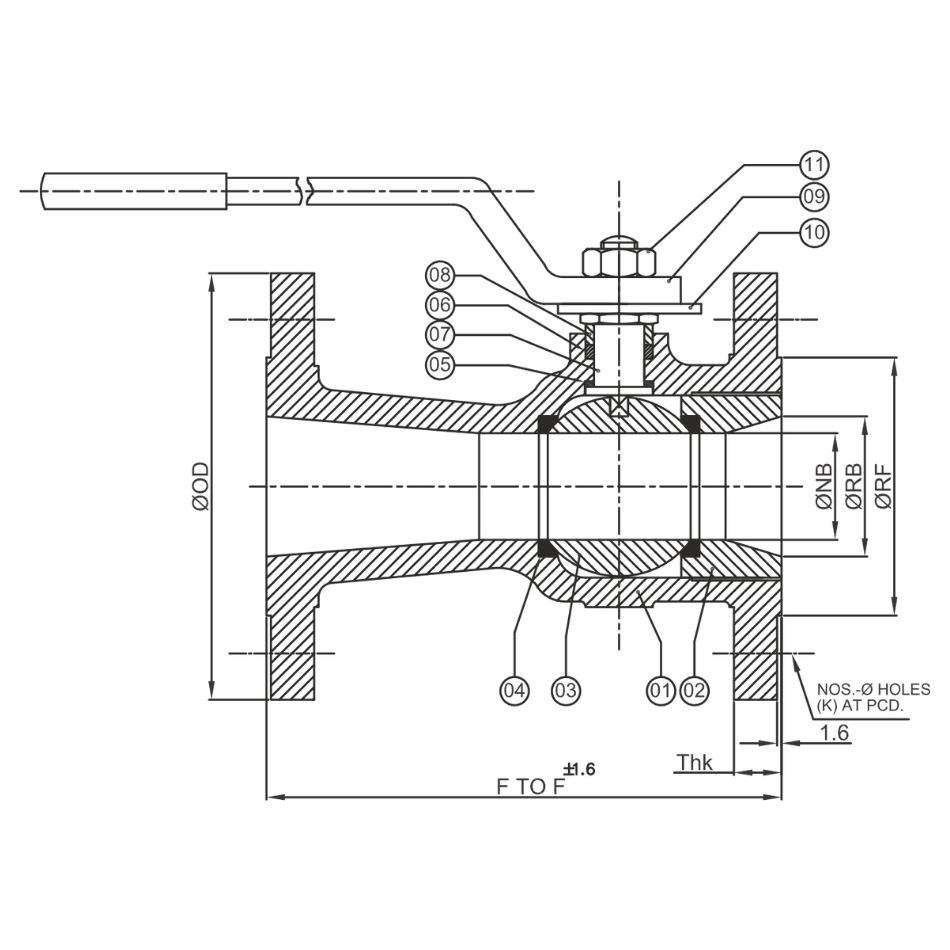

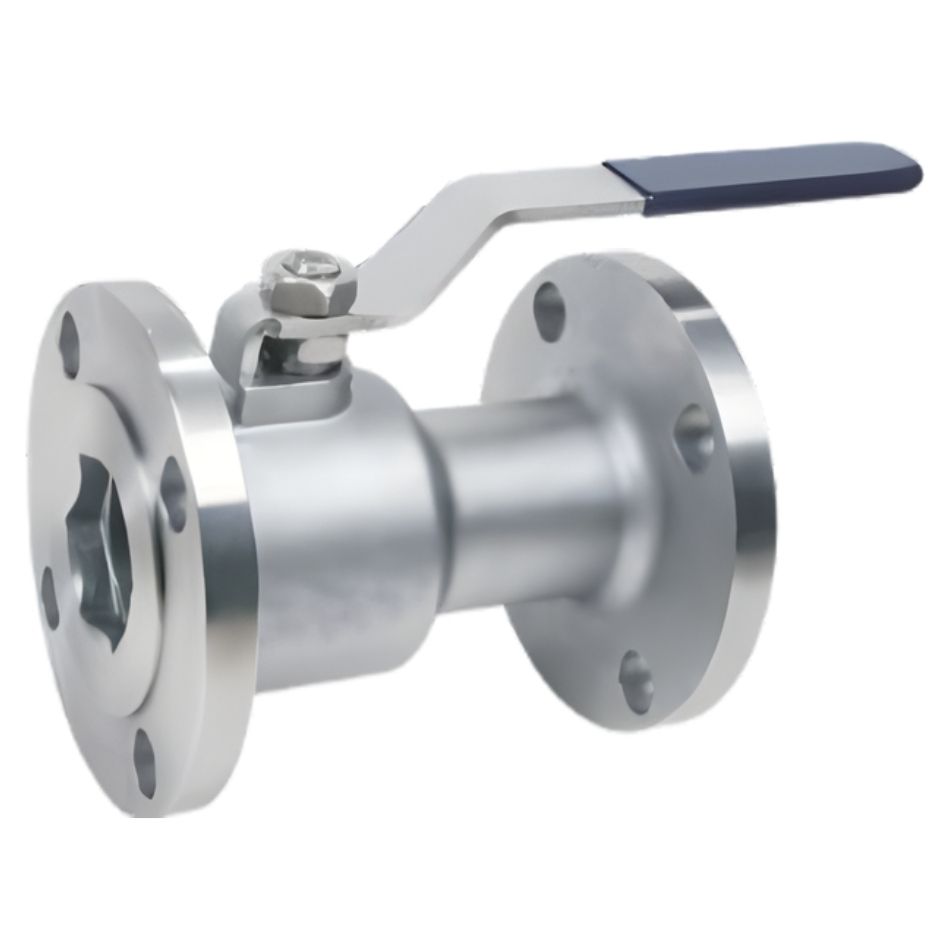

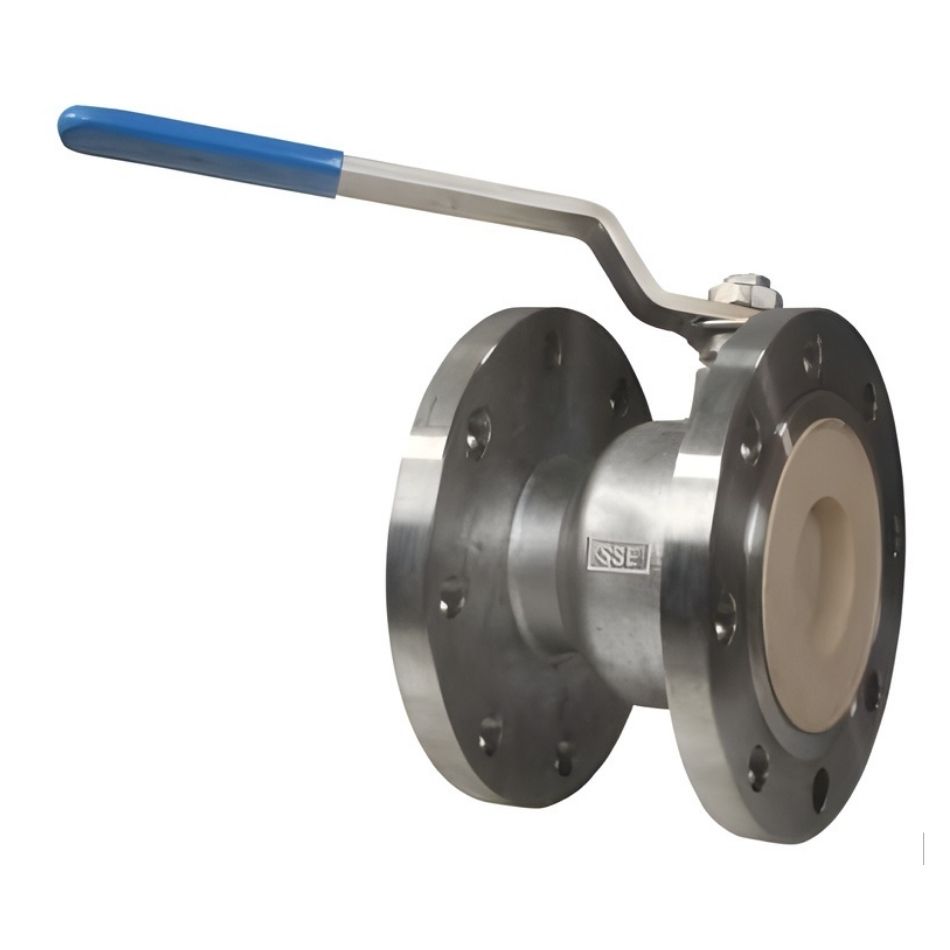

1 PC FLANGE END BALL VALVES
| PRODUCT RANGE | |
|---|---|
| Size | 15 mm - 150 mm |
| Material |
Cast Steel - ASTM A216 Gr. WCB SS304 - ASTM A351 Gr. CF8 SS316 - ASTM A351 Gr. CF8M. |
| End Connection | Flange End ASA | 150 | 300 | DIN Std. |
| APPLICABLE STANDARDS | |
|---|---|
| Design Standard |
BS 5351 EN ISO 17292 |
| Face to Face | ASME B16.10 |
| Flange Dimensions | ASME B16.5, RF |
| Testing Standard |
API 598 BS 6755 - I |
| Pressure Temp Rating | ASME B16.34 |
| Fire Safe | API 607 |
| DESIGN FEATURES |
|---|
| Full Port / Reduce Port Design |
| Blow-out Proof Stem |
| Anti Static Device |
| Investment Casting Body |
| Floating Ball |
| Locking Arrangement |
| Fire Safe Design |
| ISO 5211 Mounting Pad |
| AVAILABLE MODIFICATIONS |
|---|
| Full Jacketed Ball Valve |
| Partially Jacketed Ball Valve |
| Extended Stem |
| Pneumatic / Electric Actuator |
| TEST PRESSURE | |||
|---|---|---|---|
| Rating | Body | Seat | Pneumatic |
| 150 | 32 kg. / cm² | 23 kg. / cm² | 7 kg. / cm² |
| 300 | 79 kg. / cm² | 58 kg. / cm² | 7 kg. / cm² |
| P. NO. | PART NAME | MATERIAL | ||
|---|---|---|---|---|
| CAST STEEL | SS304 | SS316 | ||
| 1 | Body | A216 Gr. WCB | A351 Gr. CF8 | A351 Gr. CF8M |
| 2 | End Piece | A216 Gr. WCB | A351 Gr. CF8 | A351 Gr. CF8M |
| 3 | Ball | SS 304 CF8 | SS 304 CF8 | SS 316 CF8M |
| 4 | Seat Ring | PTFE GFT CFT | ||
| 5 | Stem Ring | PTFE | ||
| 6 | Gland Packing | PTFE | ||
| 7 | Stem | SS 304 | SS 304 | SS 316 |
| 8 | Gland Nut | SS 304 | SS 304 | SS 316 |
| 9 | Handle | CS SS | SS 304 | SS 304 |
| 10 | Stop Plate | MS | SS | SS |
| 11 | Handle Nut | MS | SS | SS |
| 1 Pc DESIGN BALL VALVE FLANGE ANSI 150 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| SIZE | F-F Dist | NB | RB | OD | RF | THK. | NOS | H | PCD |
| 15 mm | 108 | 12.5 | 12.5 | 90 | 34.9 | 10 | 4-16 | 60.3 | 60.3 |
| 20 mm | 118 | 13 | 19 | 100 | 42.9 | 11 | 4-16 | 70 | 70 |
| 25 mm | 127 | 19 | 25 | 110 | 50.8 | 11.6 | 4-16 | 79.4 | 79.4 |
| 40 mm | 165 | 25 | 38 | 125 | 73 | 14.7 | 4-16 | 98.4 | 98.4 |
| 50 mm | 178 | 38 | 50 | 150 | 92.1 | 16.3 | 4-19 | 120.7 | 120.7 |
| 65 mm | 190 | 50 | 65 | 180 | 104.8 | 17.9 | 4-19 | 139.7 | 139.7 |
| 80 mm | 203 | 65 | 75 | 190 | 127 | 19.5 | 4-19 | 152.4 | 152.4 |
| 100 mm | 229 | 75 | 100 | 230 | 157.2 | 24.3 | 8-19 | 190.5 | 190.5 |

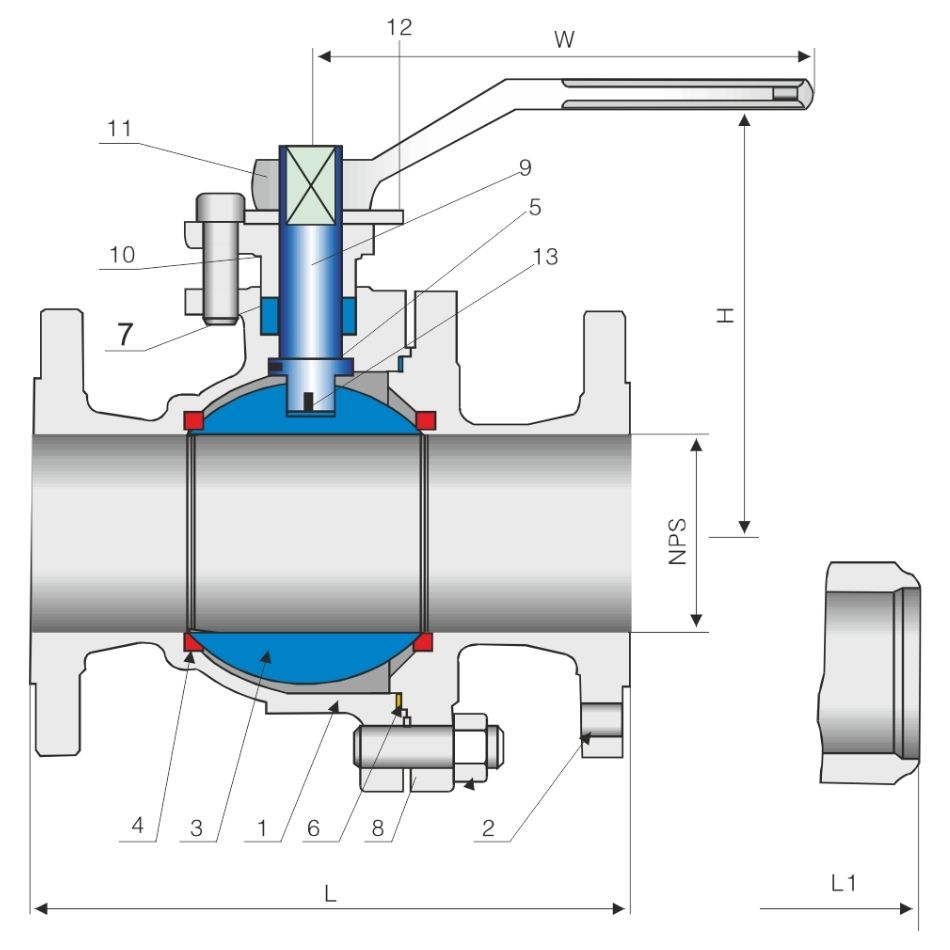

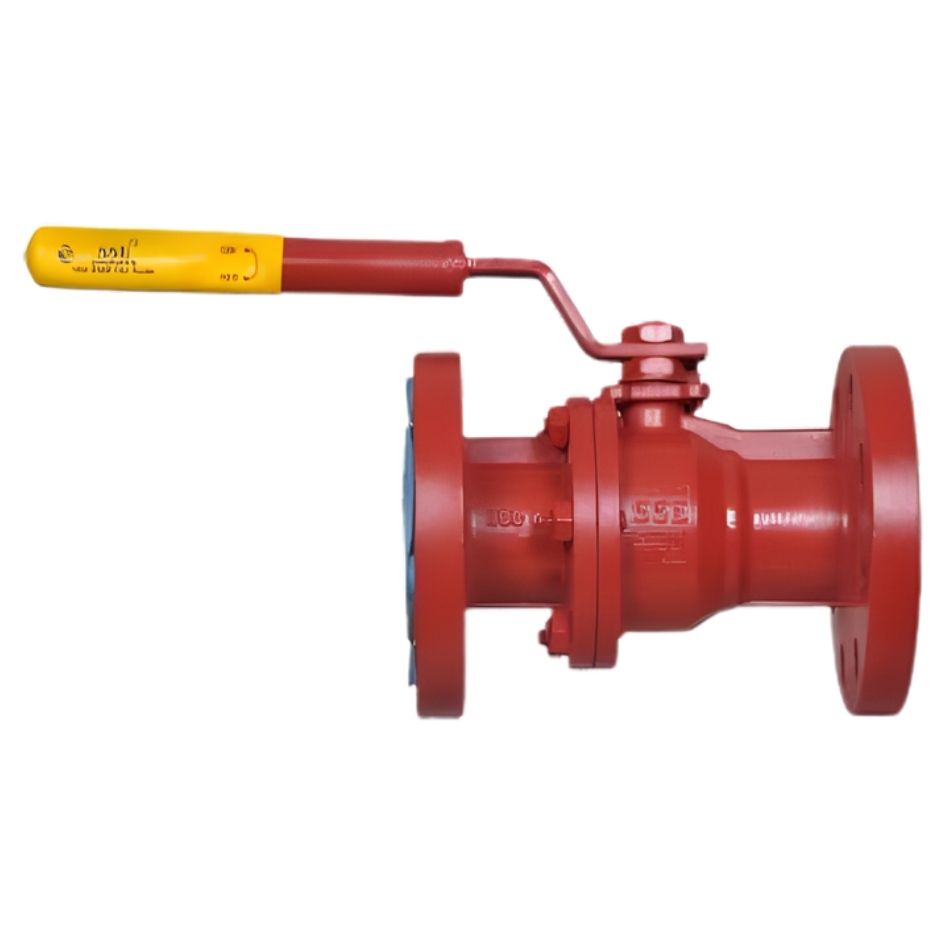

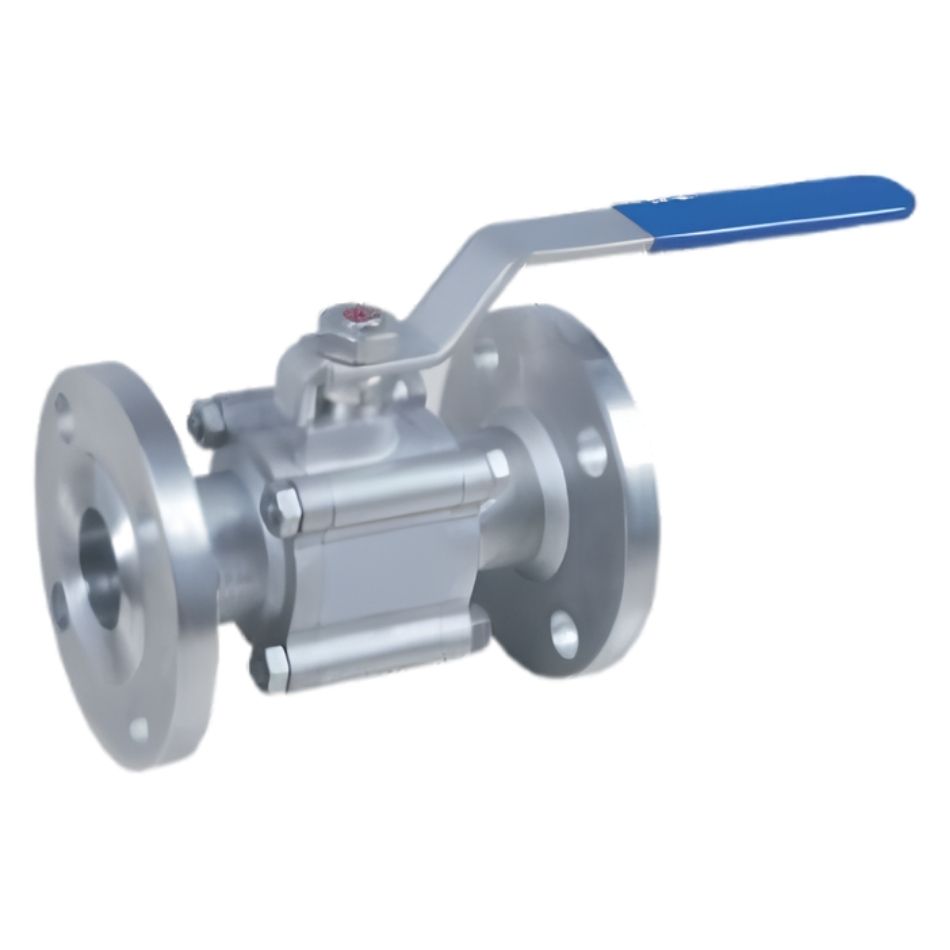

2 PC 3 PC FLANGE END BALL VALVES
| PRODUCT RANGE | |
|---|---|
| Size | 15 mm – 300 mm |
| Material |
Cast Steel – ASTM A216 Gr. WCB SS304 – ASTM A351 Gr. CF8 SS316 – ASTM A351 Gr. CF8M |

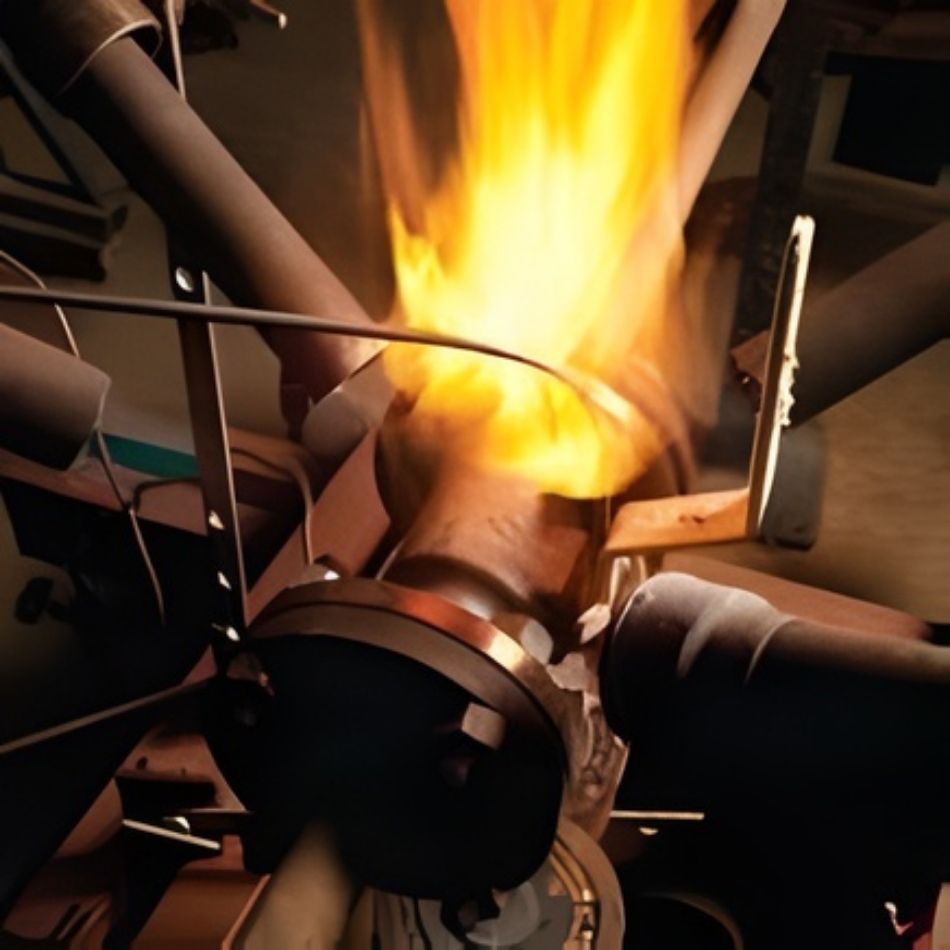

| End Connection | Flange End ASA 150 / 300 |
| APPLICABLE STANDARDS | |
|---|---|
| Design Standard | BS 5351 / EN ISO 17292 |
| Face to Face | ASME B16.10 / API 6D |
| Flange Dimensions | ASME B16.5, RF |
| Testing Standard | API 598 / BS 6755 – I |
| Pressure Temp Rating | ASME B16.34 |
| Fire Safe | API 607 |
| DESIGN FEATURES |
|---|
| Full Port Design |
| Blow-out Proof Stem |
| Anti Static Device |
| Investment Casting / Sand Casting |
| Floating Ball / Trunnion Mounted |
| Locking Arrangement |
| Fire Safe Design |
| ISO 5211 Mounting Pad |
| AVAILABLE MODIFICATIONS |
|---|
| Extended Stem Ball Valve |
| SS304L / SS316L / MOC |
| Pneumatic / Electric Actuator |
| TEST PRESSURE | ||||||
|---|---|---|---|---|---|---|
| RATING | BODY | SEAT | PNEUMATIC | |||
| 150 | 32 kg. | cm² | 23 kg. | cm² | 7 kg. | cm² |
| 300 | 79 kg. | cm² | 58 kg. | cm² | 7 kg. | cm² |
| P. NO. | PART NAME | MATERIAL | ||
|---|---|---|---|---|
| CAST STEEL | SS304 | SS316 | ||
| 1 | Body | A216 Gr. WCB | A351 Gr. CF8 | A351 Gr. CF8M |
| 2 | Side Piece | A216 Gr. WCB | A351 Gr. CF8 | A351 Gr. CF8M |
| 3 | Ball | SS 304 CF8 | SS 304 CF8 | SS 304 CF8M |
| 4 | Seat Ring | PTFE GFT CFT | ||
| 5 | Stem Ring | PTFE | ||
| 6 | Body Gasket | PTFE | ||
| 7 | Gland Packing | PTFE | ||
| 8 | Stud Nut | A193 B7-2H | SS 304 | A193 B8M-8M |
| 9 | Stem | AISI 304 | AISI 304 | AISI 316 |
| 10 | Gland Bush | AISI 304 | AISI 304 | AISI 316 |
| 11 | Handle | CS SS | SS 304 | SS 304 |
| 12 | Handle Nut | MS SS | SS | SS |
| 13 | Antistatic Device | SS 304 | SS 304 | SS 304 |
| 2 Pc / 3 Pc DESIGN BALL VALVE FLANGE END ANSI 150 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| SIZE | F-F Dist | NB | RB | OD | RF | THK. | NOS | H | PCD |
| 15 mm | 108 | 12.5 | 12.5 | 90 | 34.9 | 10 | 4-16 | 60.3 | 60.3 |
| 20 mm | 117 | 19 | 19 | 100 | 42.9 | 11 | 4-16 | 70 | 70 |
| 25 mm | 127 | 25 | 25 | 110 | 50.8 | 11.6 | 4-16 | 79.4 | 79.4 |
| 40 mm | 165 | 38 | 38 | 125 | 73 | 14.7 | 4-16 | 98.4 | 98.4 |
| 50 mm | 178 | 50 | 50 | 150 | 92.1 | 16.3 | 4-19 | 120.7 | 120.7 |
| 65 mm | 190 | 65 | 65 | 180 | 104.8 | 17.9 | 4-19 | 139.7 | 139.7 |
| 80 mm | 203 | 75 | 75 | 190 | 127 | 19.5 | 4-19 | 152.4 | 152.4 |
| 100 mm | 229 | 100 | 100 | 230 | 157.2 | 24.3 | 8-19 | 190.5 | 190.5 |

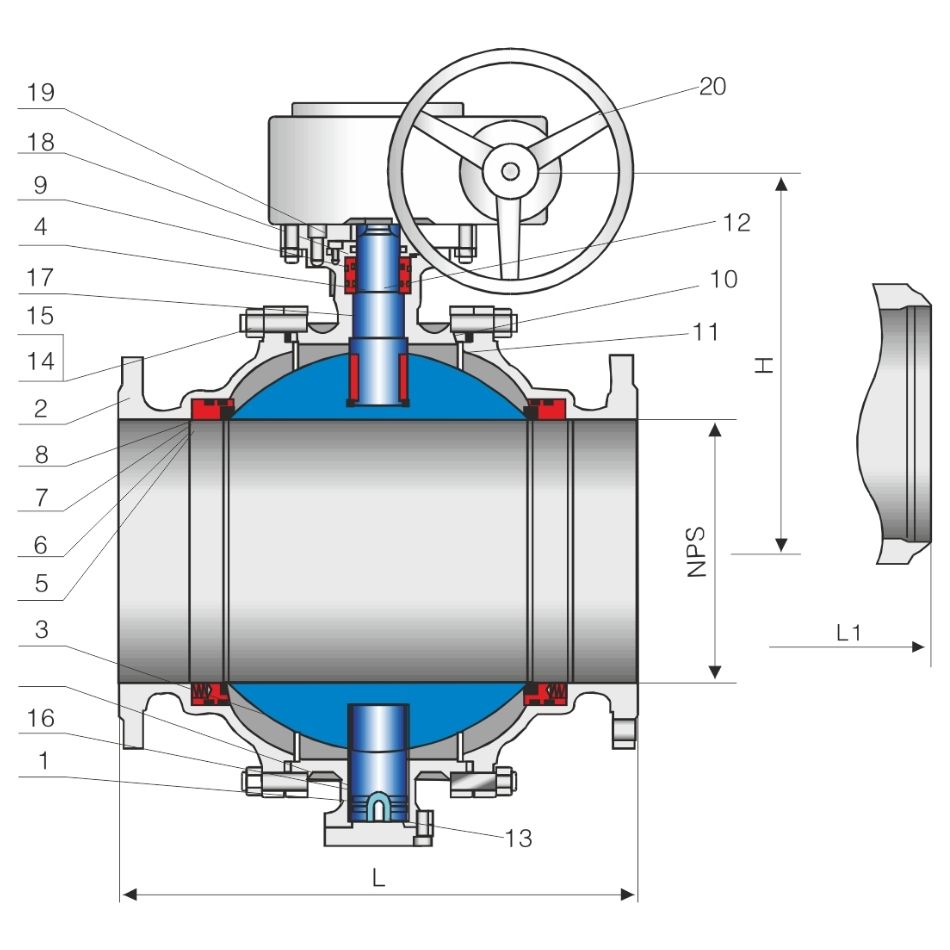

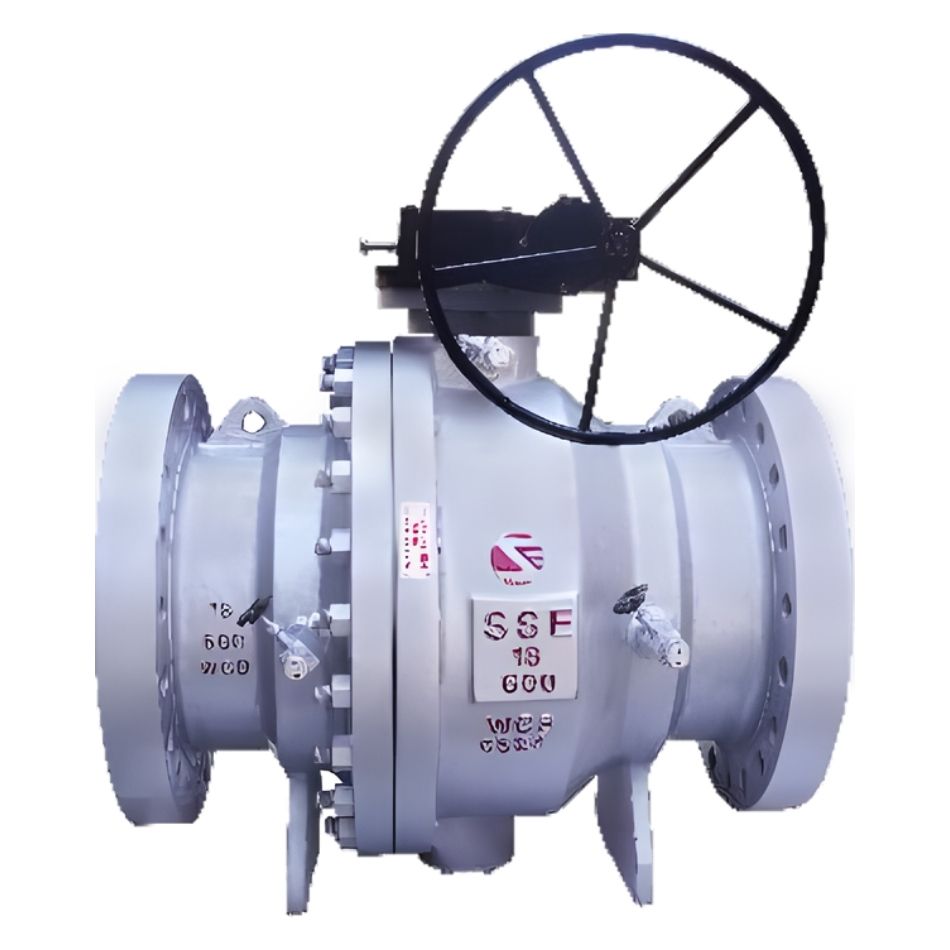

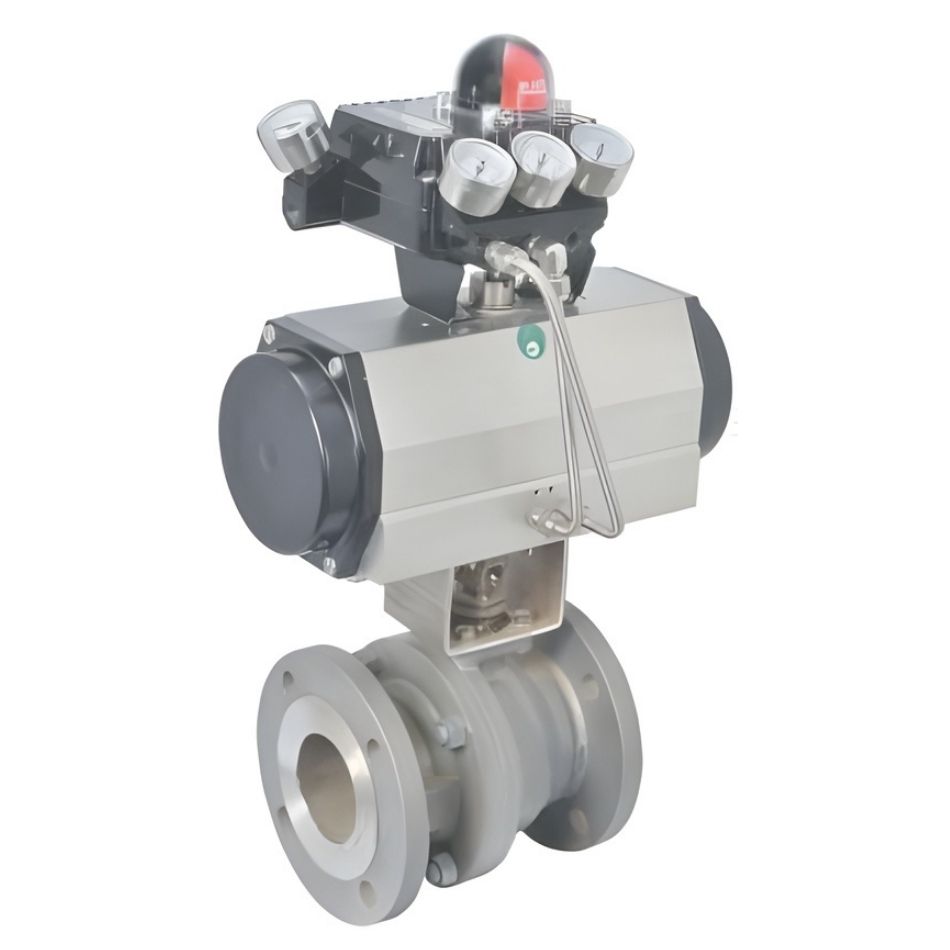

TRUNNION MOUNTED BALL VALVES
| PRODUCT SPECIFICATIONS |
|---|
| 2 / 3-Piece, Side Entry Split Body, Fire Safe, Antistatic, Blow-out Proof Stem, Floating / Trunnion Type Ball Design. |
| Ball: Full Bore or Reduced Bore. |
| End Connection: Choice of Flat Flanged, RTJ, Butt Welding End as per piping flexibility. |
| Operation: Lever up to 6” size, Gear for above sizes. As per customer requirement. |
| Packing: Standard multiple V-Teflon packing. Combined with live loading to maintain packing compression under high-cycle and severe service applications. Graphite packing used for high-temperature conditions. |
| DESIGN SPECIFICATION | |
|---|---|
| ITEM | APPLICABLE STD |
| Design Standard | API 6D |
| Fire Safe Standard | API 607, API 6FA |
| Face-to-Face Dimensions | ASME B16.10 |
| Testing Standard | API 598, BS 6755, API 6D |
| Flange Design | ASME B16.5 |
| Butt Welding Design | ASME B16.25 |
| Materials | ASTM |
| Pressure–Temperature Rating | ASME B16.34 |
| BALL VALVE DIMENSIONS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIMENSIONAL DETAILS AS PER ANSI 150 CLASS | ||||||||||||
| SIZE | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| L | 178.0 | 190.0 | 203.0 | 229.0 | 394.0 | 457.0 | 533.0 | 610.0 | 686.0 | 762.0 | 864.0 | 990.0 |
| D | 150.0 | 180.0 | 190.0 | 230.0 | 280.0 | 345.0 | 405.0 | 485.0 | 535.0 | 595.0 | 635.0 | 730.0 |
| THK | 17.5 | 20.7 | 22.3 | 22.3 | 23.9 | 27.0 | 28.6 | 30.2 | 33.4 | 35.0 | 38.1 | 45.0 |
| RFD | 92.0 | 105.0 | 127.0 | 157.0 | 216.0 | 270.0 | 324.0 | 381.0 | 413.0 | 470.0 | 533.0 | 600.0 |
| PCD | 120.7 | 139.7 | 152.4 | 190.5 | 241.3 | 298.5 | 362.0 | 431.8 | 476.3 | 539.8 | 577.9 | 650.0 |
| d | 19.05 | 19.05 | 19.05 | 19.05 | 22.23 | 22.23 | 25.40 | 25.40 | 28.58 | 28.58 | 31.75 | 38.10 |
| N | 4 | 4 | 4 | 8 | 8 | 8 | 12 | 12 | 16 | 20 | 24 | 24 |
| DIMENSIONAL DETAILS AS PER ANSI 300 CLASS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| L | 216 | 241 | 282 | 305 | 403 | 502 | 568 | 648 | 762 | 838 | 914 | 991 |
| D | 165 | 190 | 210 | 255 | 320 | 380 | 445 | 520 | 585 | 650 | 710 | 775 |
| THK | 20.7 | 23.9 | 27.0 | 30.2 | 35.0 | 39.7 | 46.1 | 49.3 | 52.4 | 55.6 | 58.8 | 62.0 |
| RFD | 92 | 105 | 127 | 157 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 |
| PCD | 127 | 149.2 | 168.3 | 200 | 269.9 | 330.2 | 387.4 | 450.8 | 514.4 | 571.5 | 628.6 | 685.8 |
| d | 19.05 | 22.22 | 22.22 | 22.22 | 22.22 | 25.40 | 28.57 | 31.75 | 31.75 | 34.93 | 34.93 | 34.93 |
| N | 8 | 8 | 8 | 8 | 12 | 12 | 16 | 20 | 20 | 24 | 24 | 24 |
| DIMENSIONAL DETAILS AS PER ANSI 600 CLASS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| L | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 990 | 1092 | 1194 |
| D | 165 | 190 | 210 | 275 | 355 | 420 | 510 | 560 | 605 | 685 | 745 | 815 |
| THK | 25.4 | 28.6 | 31.8 | 38.1 | 47.7 | 55.6 | 63.5 | 66.7 | 69.9 | 76.2 | 82.6 | 88.9 |
| RFD | 92 | 105 | 127 | 157 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 |
| PCD | 127 | 149.2 | 168.3 | 215.9 | 292.1 | 349.2 | 431.8 | 489 | 527 | 603.2 | 654 | 723.9 |
| d | 19.05 | 22.22 | 22.22 | 25.40 | 28.57 | 31.75 | 34.92 | 34.92 | 38.10 | 41.28 | 44.45 | 44.45 |
| N | 8 | 8 | 8 | 8 | 12 | 16 | 16 | 20 | 20 | 20 | 24 | 24 |

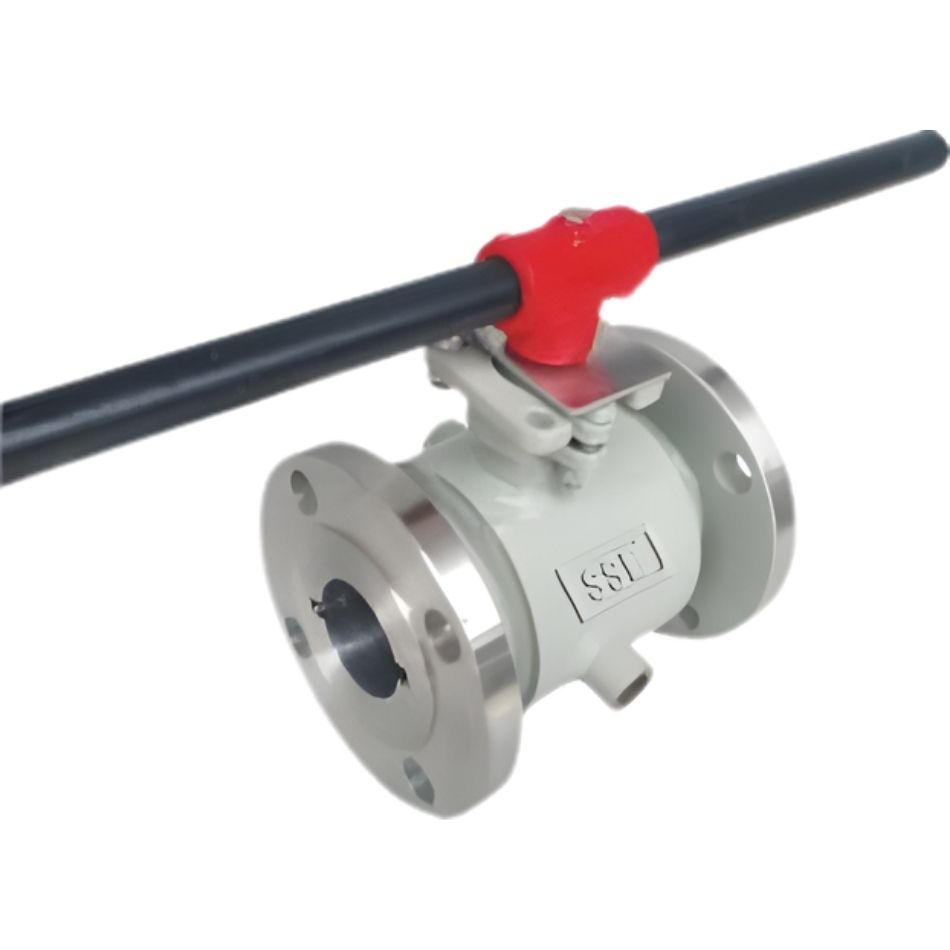

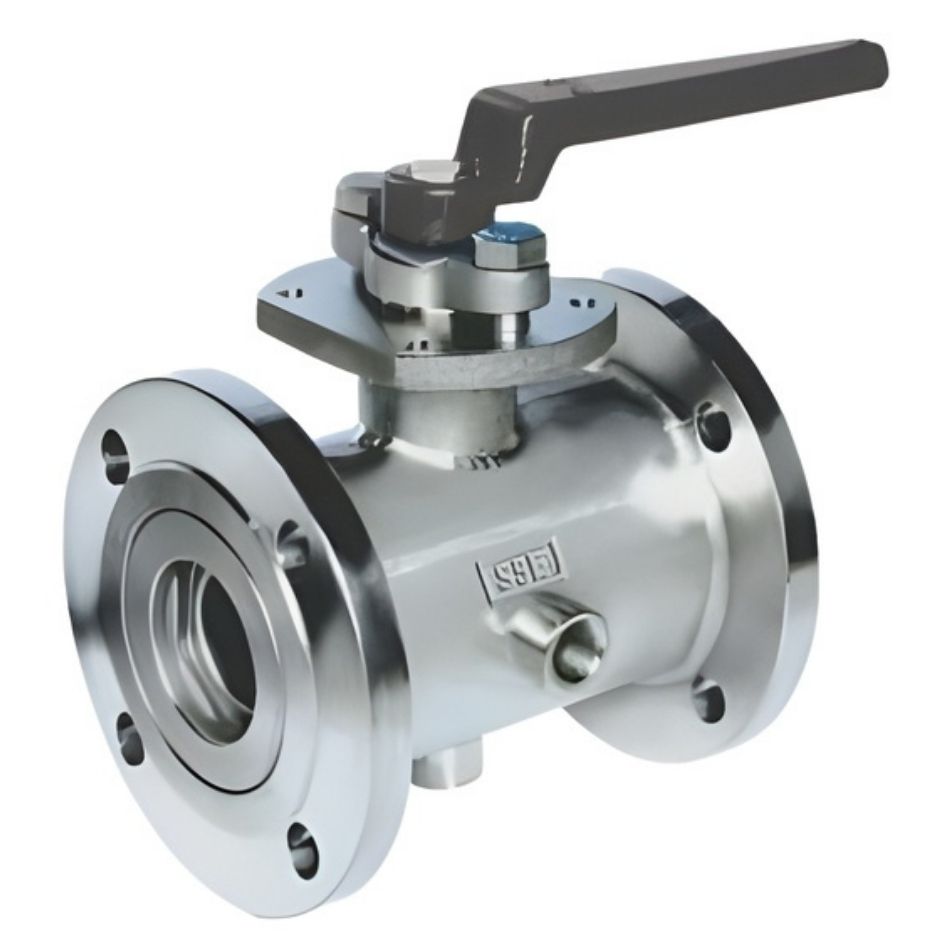

SINGLE PIECE JACKETED BALL VALVES
HALF JACKETED BALL VALVE
In this type of Valve, it is not required to go with one size higher flanges, for bolting learance as sufficient gap is available between Flange and Jacket Body. All partial half jacketed valve face to face distance is as per ASME B 16.10 standard which facilitate to replace in future with any standard non jacketed valve also. Partial Half Jacketed Ball Valves are used to maintain fluid temperature during an operation to keep fluids at flow-able liquid stage.
FULL JACKETED BALL VALVE
The Jacket covers the body from one flange to the other flange. Valve body is modified by adding oversize flanges. Eg 2 x 3 Steam Jacketed Valve has the nominal bore of 2 and the flange size is 3. It allows enough space for bolting clearance after jacket fabrication on valve body. The valve is provided with 3 nozzle connection for inlet, outlet and drain of external media. Full Jacketed valves are used to handle highly viscous materials or materials that solidifiescrystalizes at ambient temperatures
| PRODUCT RANGE | |
|---|---|
| Size | 15 mm – 150 mm |
| MOC |
CS – ASTM A216 Gr. WCB SS304 – ASTM A351 Gr. CF8 SS316 – ASTM A351 Gr. CF8M |
| Flange End Rating | ASA 150 / 300 BS Table F |
| APPLICABLE STANDARDS | |
|---|---|
| Design Mfg. | BS 5351 / 75017292 |
| Face to Face | ASME B16.10 |
| Flange End Drilling | ASME B16.5, RF |
| Testing Standard | API 598 / BS 6755 – I |
| DESIGN FEATURES | |
|---|---|
| Full Bore Design | |
| IC Casting Body | |
| Single Piece Design | |
| CS Body with SS Jacket Option | |
| ISO 5211 Mounting Pad | |
| Extended Stem on Request | |
| Electric / Pneumatic Actuator |
| AVAILABLE MODIFICATIONS | |
|---|---|
| Full Jacketed Ball Valve | |
| Partially Jacketed Ball Valve | |
| Extended Stem | |
| Pneumatic / Electric Actuator |
| SEAT MATERIAL | TEMPERATURE |
|---|---|
| PTFE | 190 °C |
| GFT | 210 °C |
| CFT | 225 °C |
| TEST PRESSURE | |||
|---|---|---|---|
| RATING | BODY | SEAT | PNEUMATIC |
| 150 | 32 kg/cm² | 23 kg/cm² | 7 kg/cm² |
| 300 | 79 kg/cm² | 58 kg/cm² | 7 kg/cm² |
| JACKET | 7 kg/cm² | ||
| JACKETED BALL VALVE FL ANSI 150 | ||||||||
|---|---|---|---|---|---|---|---|---|
| SIZE | NB | F TO F | T.K. | OD | RF | N- | H | PCD |
| 15 x 40 mm | 12.5 | 108 165 |
14.3 | 127.0 | 73 | 4- | 16 | 98.4 |
| 25 x 50 mm | 25 | 127 178 |
16 | 152.4 | 92 | 4- | 19 | 120.7 |
| 40 x 65 mm | 38 | 165 190 |
17.5 | 177.8 | 105 | 4- | 19 | 139.7 |
| 50 x 80 mm | 50 | 178 203 |
19.5 | 190.5 | 127 | 4- | 19 | 152.4 |
| 80 x 100 mm | 75 | 203 229 |
23.8 | 228.6 | 157.2 | 8- | 19 | 190.5 |
| 100 x 150 mm | 100 | 229 267 |
25.4 | 279.4 | 216 | 8- | 22 | 241.3 |
Note: F-F Distance as per Bore Size / Flange Size. Client to confirm.
| MATERIAL SPECIFICATIONS | ||||
|---|---|---|---|---|
| P. NO. | PART NAME | CAST STEEL | SS304 | SS316 |
| 1 | Body | A216 Gr. WCB | A351 Gr. CF8 | A351 Gr. CF8M |
| 2 | End Piece | A216 Gr. WCB | A351 Gr. CF8 | A351 Gr. CF8M |
| 3 | Ball | SS 304 | CF8 SS 304 |
CF8M SS 316 |
| 4 | Seat Ring | — | PTFE | CFT |
| 5 | Stem Ring | — | PTFE | — |
| 6 | Body Gasket | — | PTFE | — |
| 7 | Gland Packing | — | PTFE | — |
| 8 | Stem | SS 304 | SS 304 | SS 316 |
| 9 | Gland Nut | SS 304 | SS 304 | SS 316 |
| 10 | Lever | CS | SS | SS |
| 11 | Stop Pin | CS | SS | SS |
| 12 | Lever Nut | CS | SS 304 | SS 316 |
| 13 | Jacket | CS | SS 304 | SS 316 |
FLUSH BOTTOM BALL VALVES
Ball type Flush Bottom Valve is used to Drain Discharge Liquids from bottom of vessel, reactor and tanks. Specially suitable when space below vessel tank is insufficient.
| PRODUCT RANGE | |
|---|---|
| Size Range | 25 mm – 200 mm |
| Pressure Rating |
ASA 150 / 300 Cast Steel – ASTM A216 Gr. WCB SS304 – ASTM A351 Gr. CF8 SS316 – ASTM A351 Gr. CF8M |
| End Connection | Flange End ASA 150 / 300 |
| APPLICABLE STANDARDS | |
|---|---|
| Design Std. | BS 5351 MFS Standard |
| Face to Face | Mfg Std. |
| Flange Drilling | ASME B16.5, RF |
| Testing Standard | API 598 BS 6755 - I |
| DESIGN FEATURES |
|---|
| Single Piece Design Body |
| Investment Casting Body |
| Blow Out Proof Stem |
| Ball Projection |
| ISO Mounting Pad |
| Operation at 45 Deg |
| AVAILABLE MODIFICATIONS |
|---|
| PTFE / CFT Seat |
| SS304L / SS316L MOC |
| F-F as per Client Requirement |
| Manual Gear Operation |
| Electrical / Pneumatic Actuator |
| SEAT MATERIAL | TEMPERATURE |
|---|---|
| PTFE | 190°C |
| GFT | 210°C |
| CFT | 225°C |

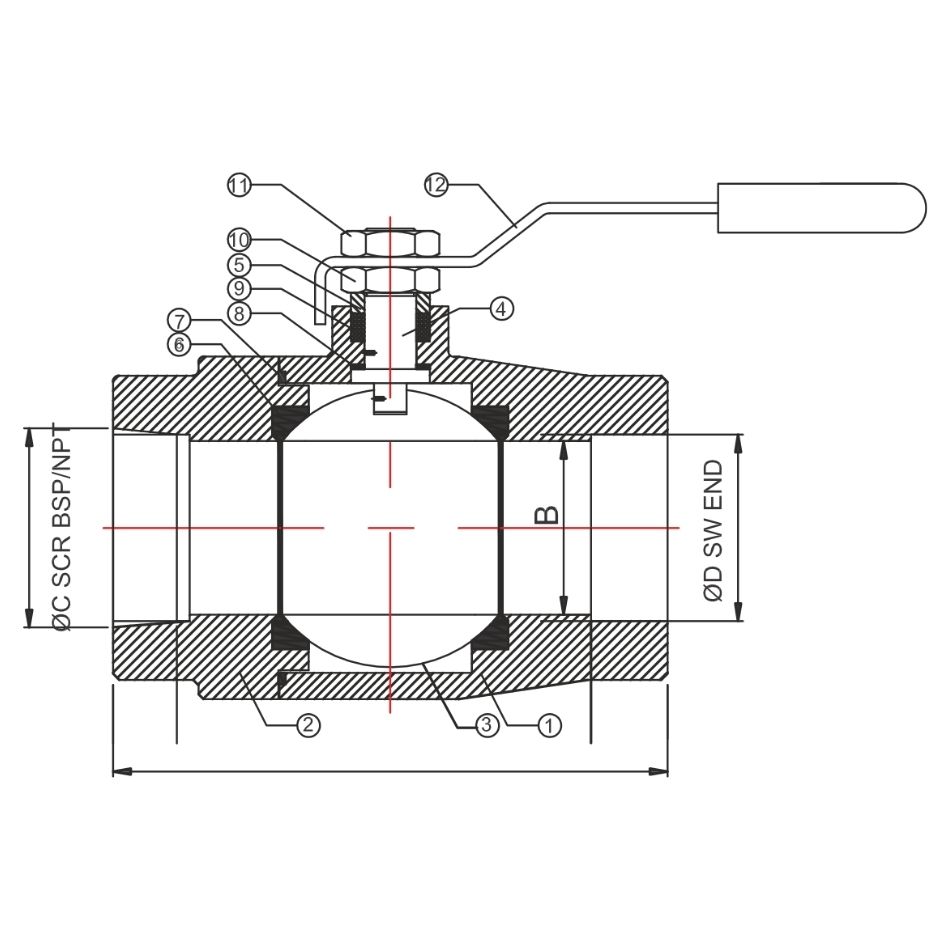

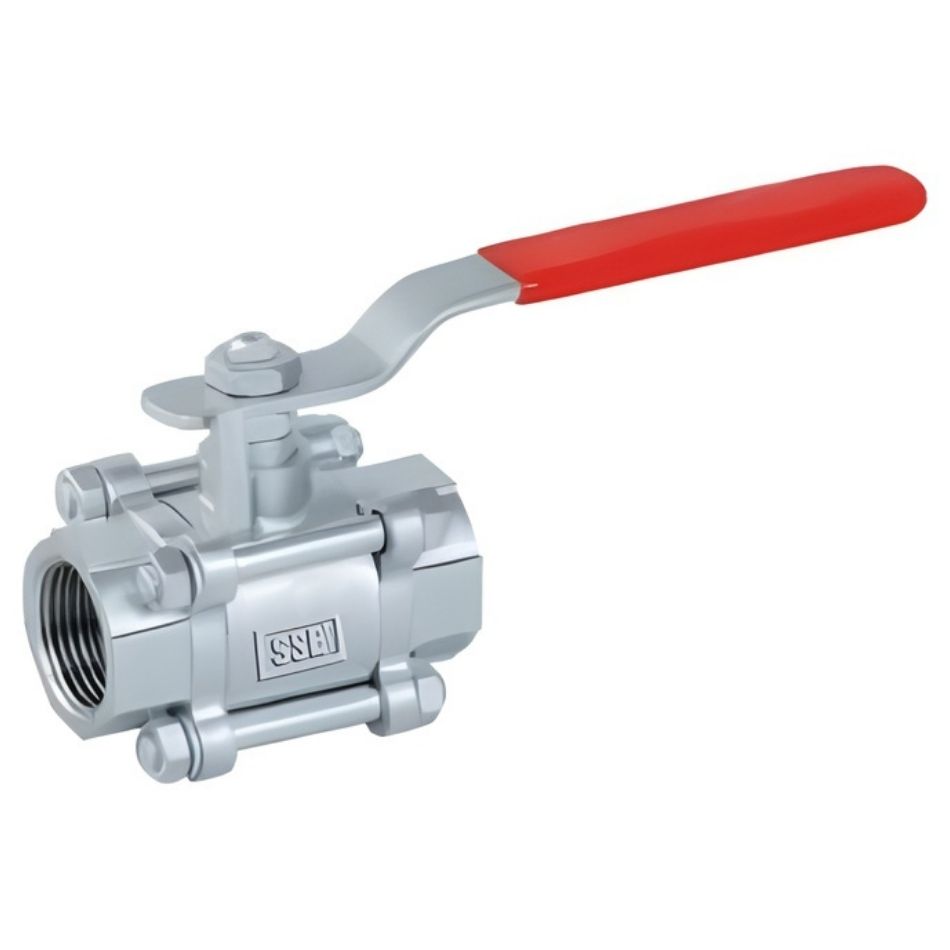

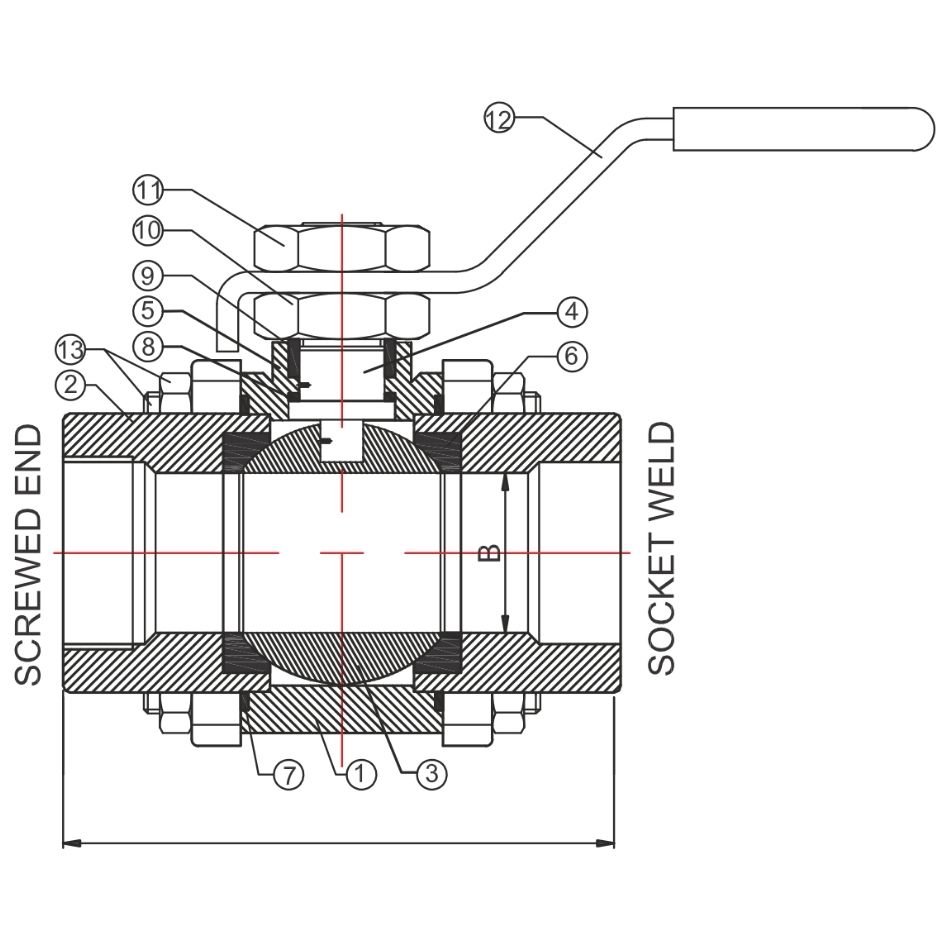

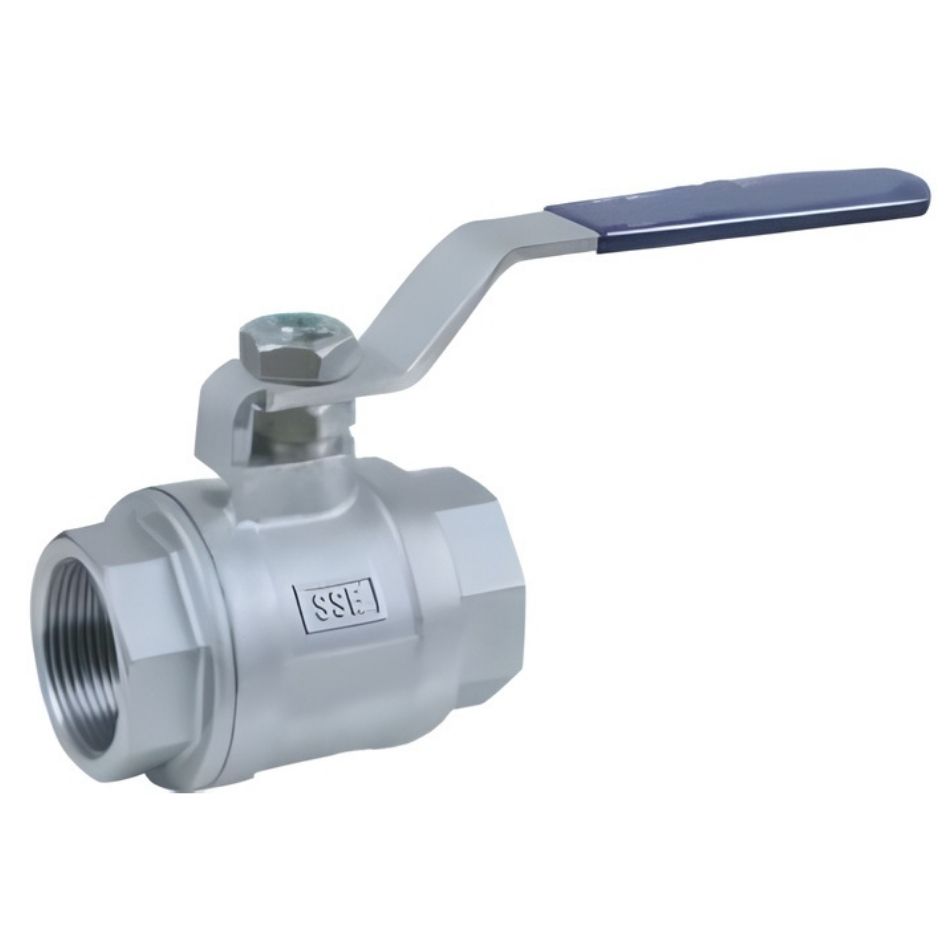

1-3 PC SCREWED END BALL VALVES
| PRODUCT RANGE | |
|---|---|
| Size Range | 15mm - 50mm |
| Material |
Cost Steel-ASTM A216 Gr. WCB SS304-ASTM A351 Gr. CF8 SS316-ASTM A351 Gr. CF8M |

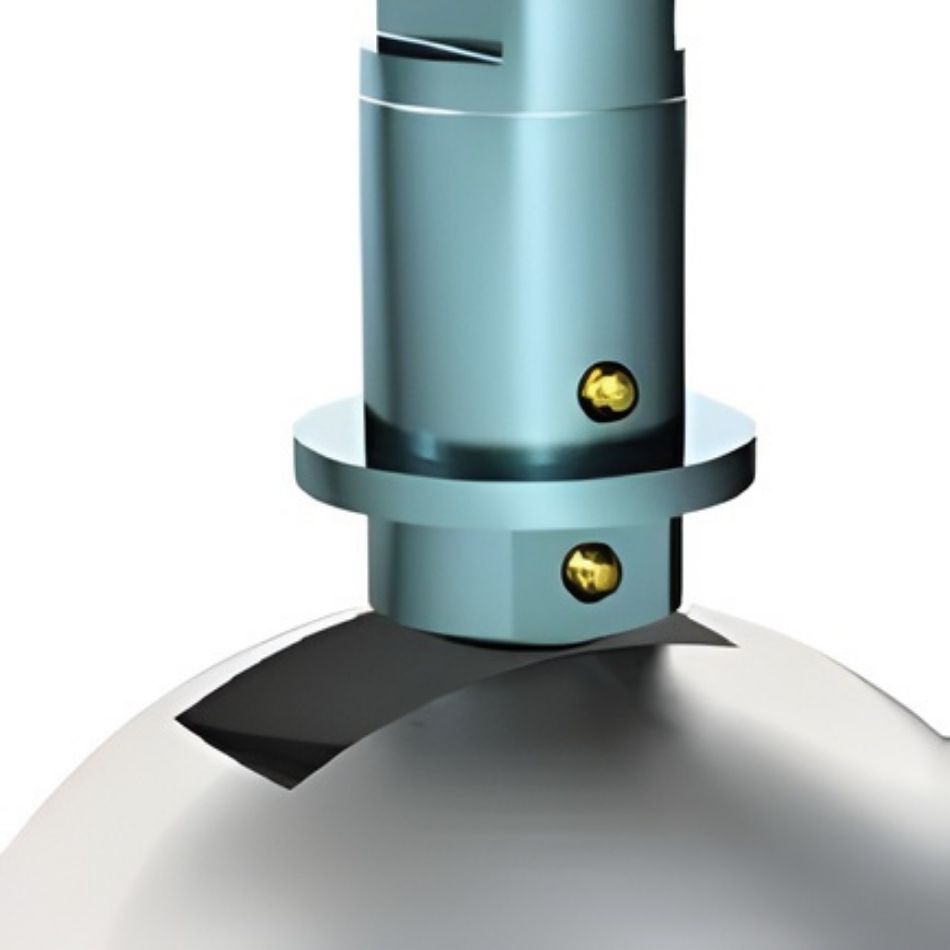

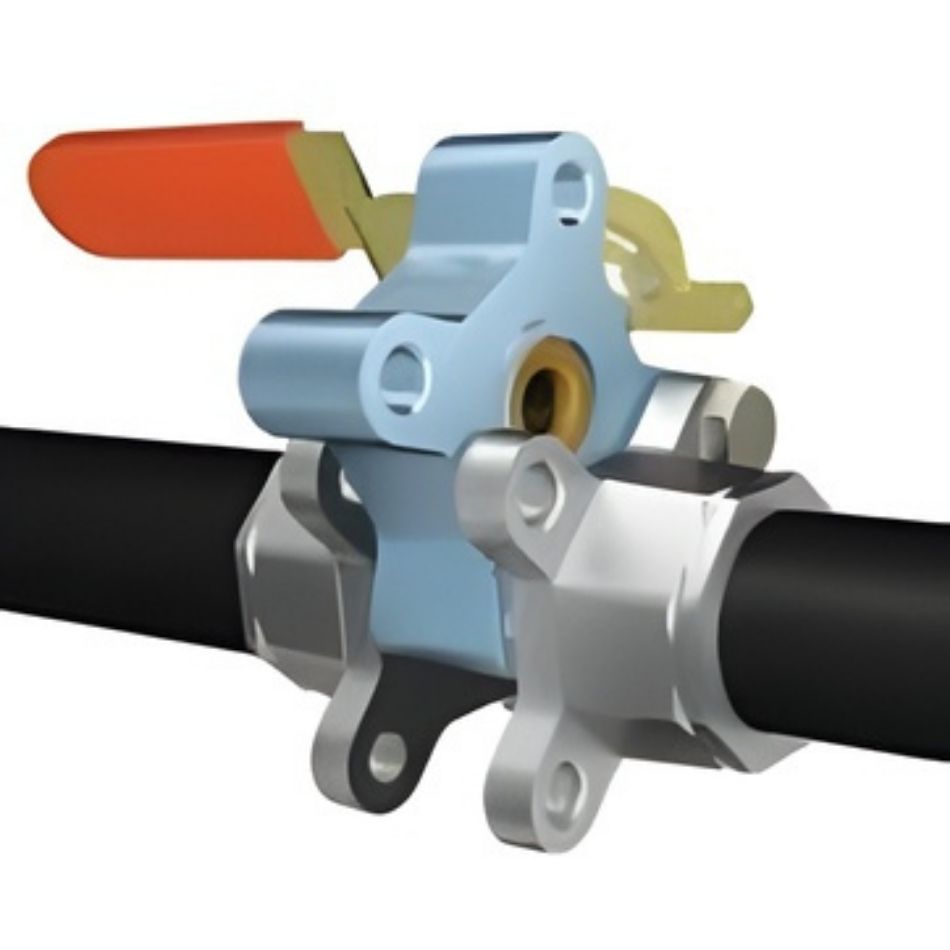

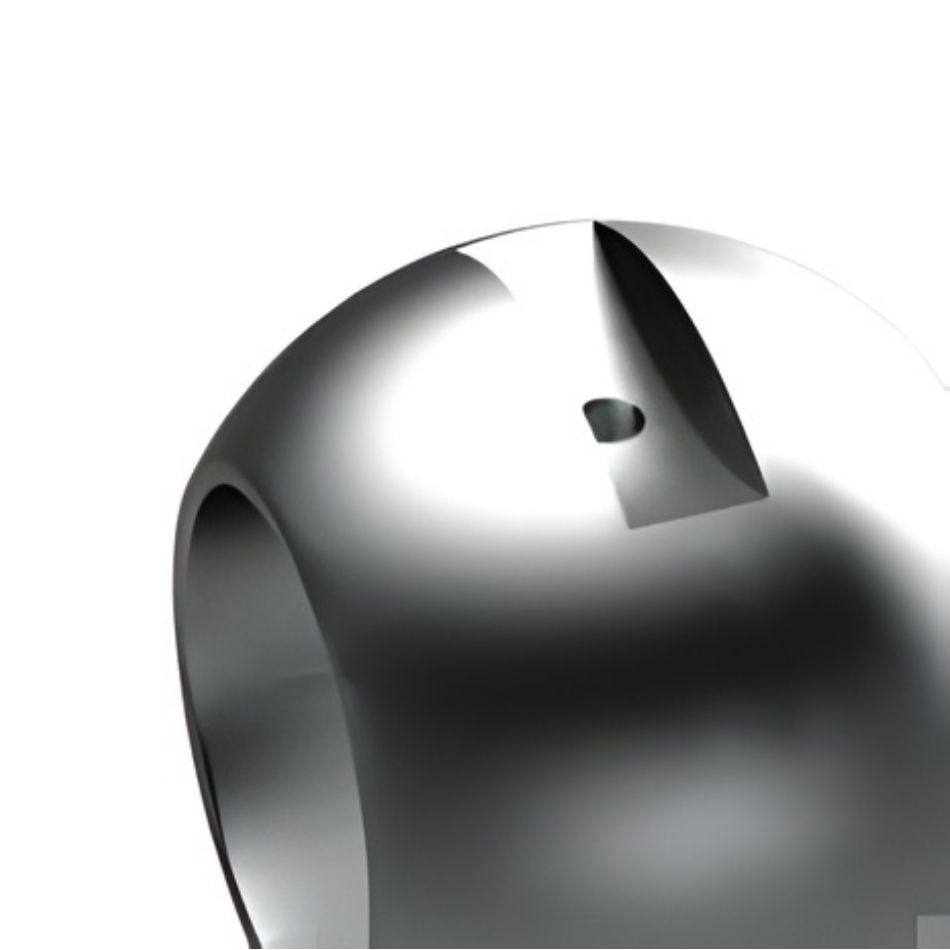

| End Connection | Screwed BSP NPT Socket Weld |
| APPLICABLE STANDARDS | |
|---|---|
| Design Std. | BS EN ISO 17292 BS 5351 |
| Pressure Temp Rating | Mfg Std. |
| Face to Face | Mfg. Std. |
| Butt Weld Ends | ASME B16.25 |
| Screwed End | ANSI B2.1 |
| Socket Weld | ASME B16.11 |
| Testing Standard | API 598 EN 122661 BS 6755-I |
| DESIGN FEATURES |
|---|
| 1 3-Piece design. |
| Full Bore Reduce Boe Design |
| Blow-out Proof Stem |
| Anti Static Device |
| Cast Forged Body |
| Locking Arrangement |
| ISO 5211 Mounting Pad |
| Low Operating Torque |
| Extended Stem on Request |
| SEAT MATERIAL | TEMPERATURE |
|---|---|
| PTFE | 190°C |
| GFT | 210°C |
| CFT | 225°C |
| TEST PRESSURE | |||
|---|---|---|---|
| RATING | BODY | SEAT | PNEUMATIC |
| 150 | 32 kg/cm² | 23 kg/cm² | 7 kg/cm² |
| 800 | 211 kg/cm² | 153 kg/cm² | 7 kg/cm² |
| P. NO. | PART NAME | MATERIAL | ||
|---|---|---|---|---|
| CAST STEEL | SS304 | SS316 | ||
| 1 | Body | A216 Gr. WCB | A351 Gr. CF8 | A351 Gr. CF8M |
| 2 | Side Piece | A216 Gr. WCB | A351 Gr. CF8 | A351 Gr. CF8M |
| 3 | Ball | SS 304 / CF8 | SS 304 / CF8 | SS 304 / CF8M |
| 4 | Stem | AISI 304 | AISI 304 | AISI 316 |
| 5 | Gland | AISI 304 | AISI 304 | AISI 316 |
| 6 | Seat | PTFE / GFT | ||
| 7 | Body Gasket | PTFE | ||
| 8 | Stem Packing | PTFE | ||
| 9 | Gland Packing | PTFE | ||
| 10 | Gland Nut | CS | SS | SS |
| 11 | Stem Nut | CS | SS | SS |
| 12 | Handle | CS | SS | SS |
| 13 | Studs / Nuts | A193 Gr. B7-2H | SS 304 | A193 Gr. B8M-8M |
