Strainers

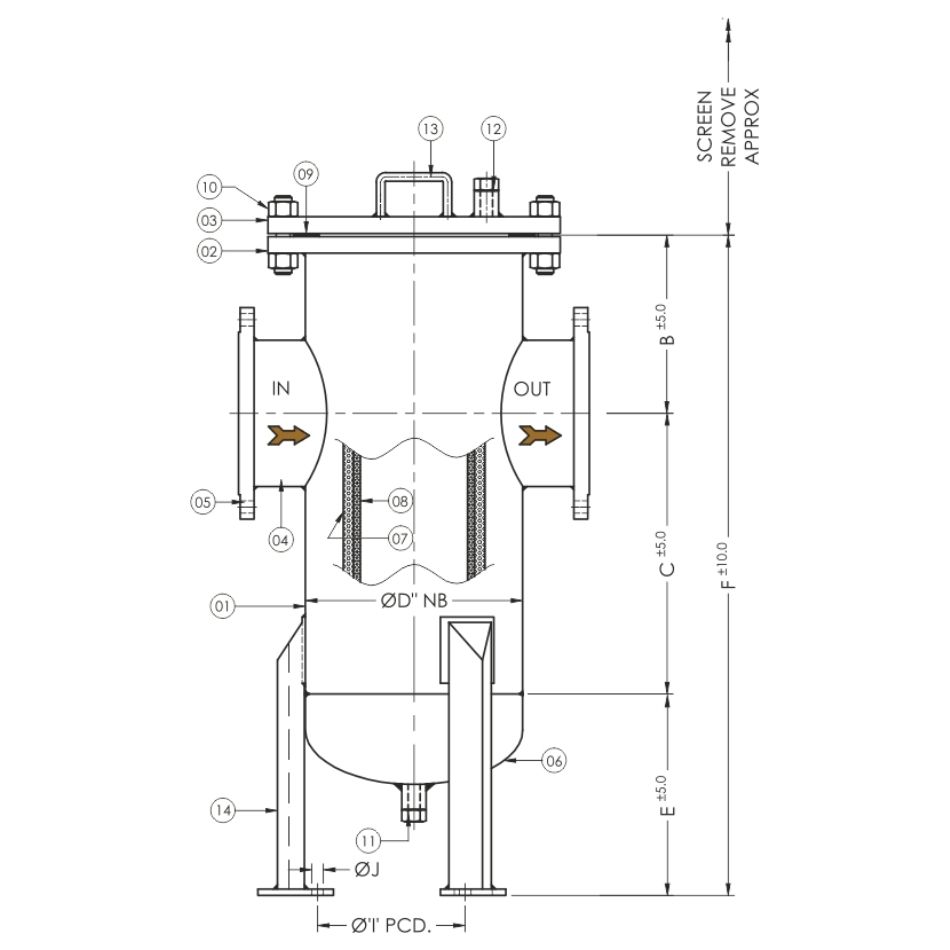

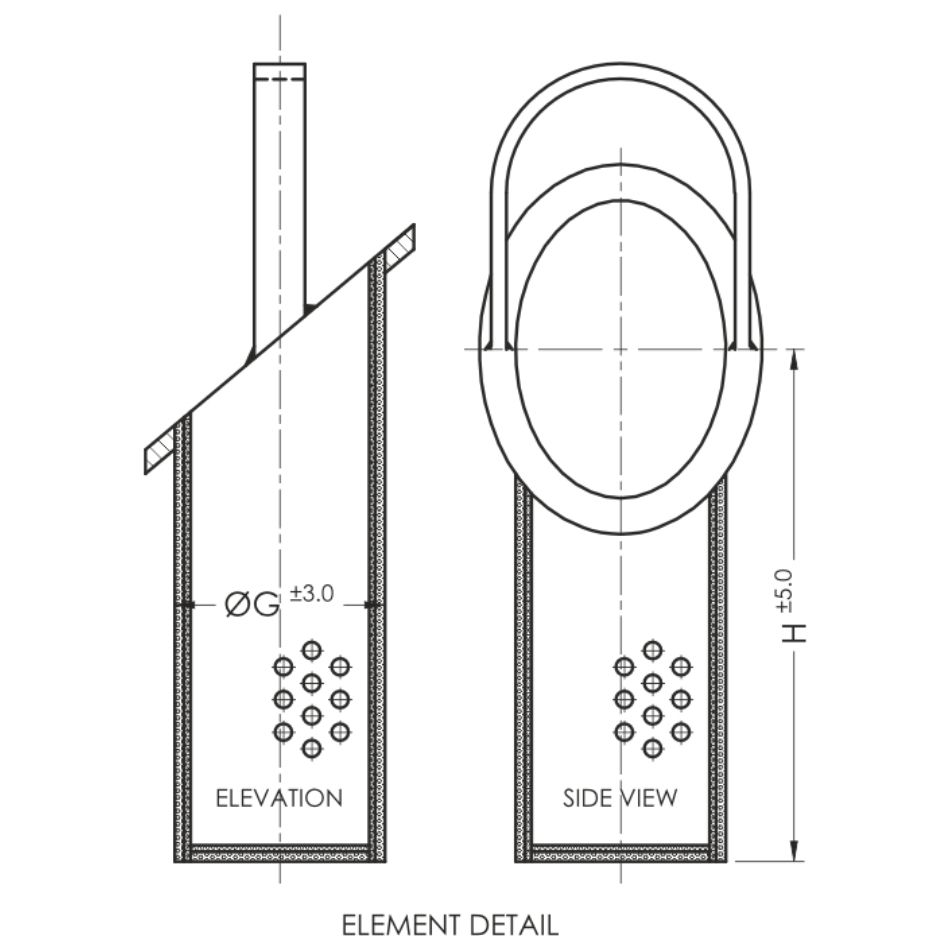

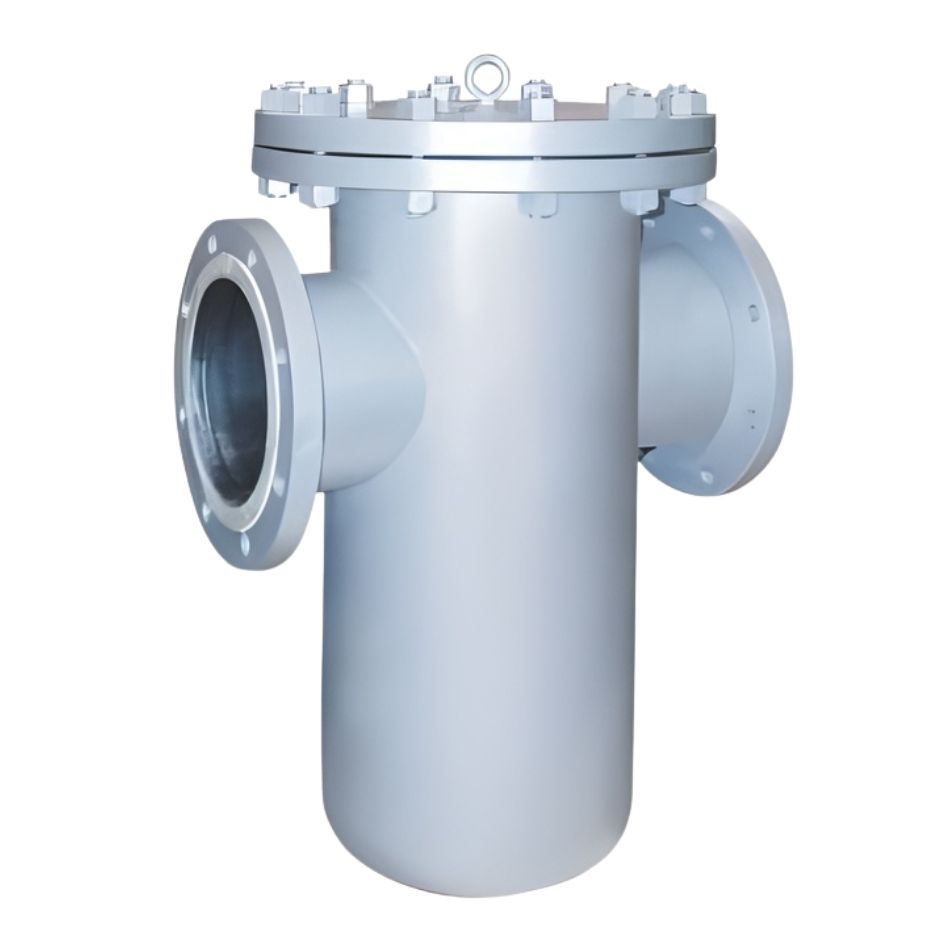

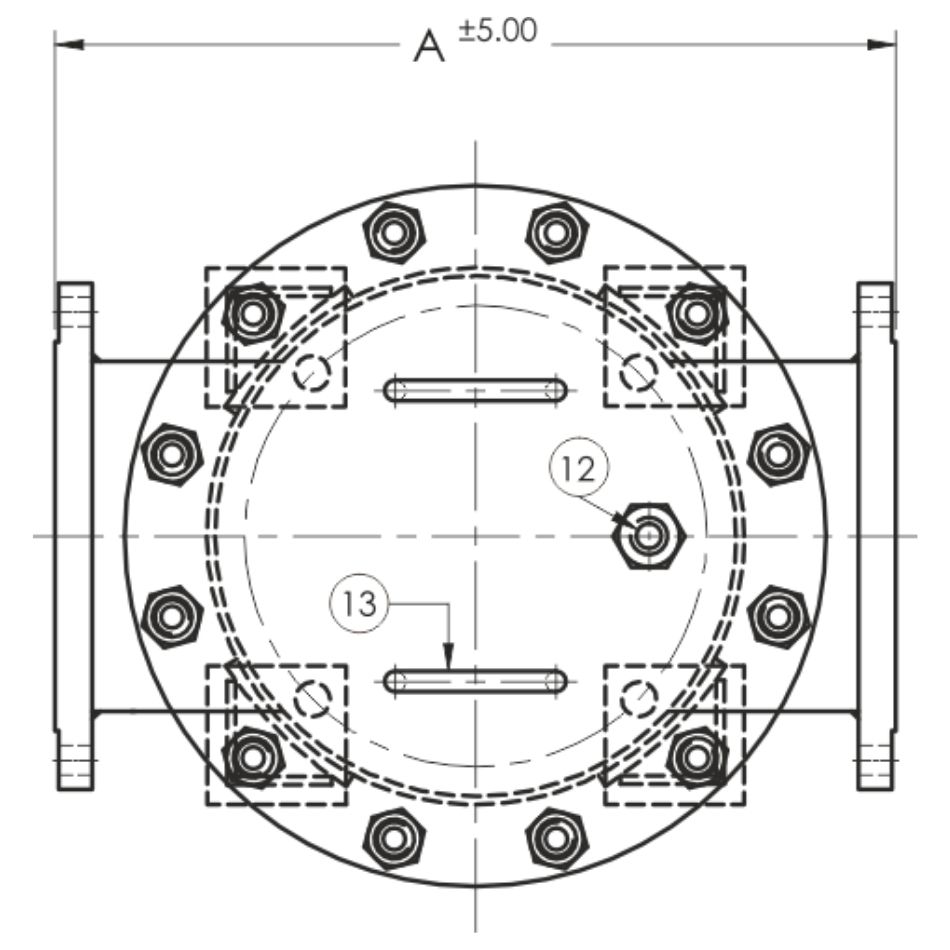

BASKET STRAINER
Features
Straight through flow design
Low Pressure Loss
Slant top basket design
Basket perforations from 1/32 to 1
20 to 400 meshlinings for fine straining applications
Options
Hinged cover or davit assembly for easier maintenance
DrainVent Valves
D. P. Tapings Gauge
Back-flushing system for manual
Steam jacket for highly viscous fluids
Rotated or offset nozzle placement
High pressure capabilities
Plated Filter elements
Different Drilling templates ASME | DN | BS | IS
Magnetic Screen Insert
ASME Code construction
Brazilian NR-13 available
European standards - DINPED available
Coatings and linings available upon request

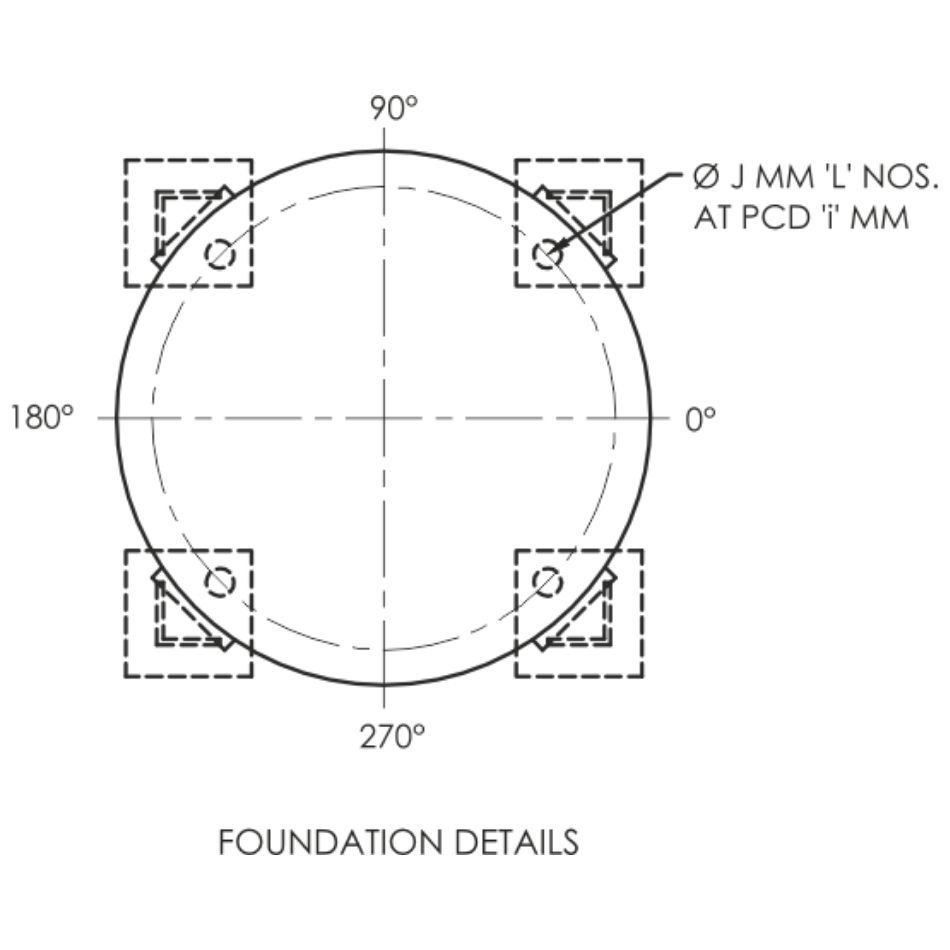

| Material of Construction | |||||
|---|---|---|---|---|---|
| No. | Description | Carbon Steel | Stainless Steel | Qty. | |
| 1 | Shell | MS | SS 304 | SS 316 | 1 |
| 2 | Shell Flange | MS | SS 304 | SS 316 | 1 |
| 3 | Cover Flange | MS | SS 304 | SS 316 | 1 |
| 4 | In–Out Nozzle | MS | SS 304 | SS 316 | 2 |
| 5 | Nozzle Flange | MS | SS 304 | SS 316 | 2 |
| 6 | Dish End | MS | SS 304 | SS 316 | 1 |
| 7 | P. Sheet | SS 304 | SS 304 | SS 316 | 1 |
| 8 | Wire Mesh | SS 304 | SS 304 | SS 316 | 1 |
| 9 | Stud Nut | Non Asbestos | 1 | ||
| 10 | Stud Nut | IS 1367 | IS 1367 Zinc Plated | 1 | |
| 11 | Drain | ASTM A 105 | SS 304 | SS 316 | 1 |
| 12 | Vent | ASTM A 105 | SS 304 | SS 316 | 1 |
| 13 | Handle | MS | SS 304 | SS 316 | - |
| 14 | Leg | MS | SS 304 | SS 316 | - |
| Size | Dimension | Element | PCD Holes | No. of LEG | Screen Removal Approx. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | MM | A | B | C | D | E | F | G | H | I | J | L | |
| 1 | 25 | 300 | 125 | 140 | 4 | - | - | 60 | 150 | - | - | - | 280 |
| 1½ | 40 | 325 | 150 | 205 | 6 | - | - | 105 | 230 | - | - | - | 400 |
| 2 | 50 | 325 | 150 | 205 | 6 | - | - | 105 | 230 | - | - | - | 400 |
| 2½ | 65 | 350 | 150 | 205 | 6 | - | - | 105 | 230 | - | - | - | 400 |
| 3 | 80 | 350 | 160 | 220 | 6 | - | - | 105 | 240 | - | - | - | 420 |
| 4 | 100 | 400 | 175 | 275 | 8 | - | - | 150 | 290 | - | - | - | 485 |
| 5 | 125 | 485 | 215 | 285 | 10 | 350 | 850 | 205 | 300 | 240 | 18 | 3 | 535 |
| 6 | 150 | 500 | 225 | 300 | 10 | 350 | 875 | 205 | 325 | 240 | 18 | 3 | 570 |
| 8 | 200 | 550 | 305 | 410 | 12 | 360 | 1075 | 240 | 450 | 270 | 20 | 3 | 775 |
| 10 | 250 | 750 | 305 | 515 | 16 | 385 | 1205 | 320 | 525 | 335 | 20 | 3 | 850 |
| 12 | 300 | 825 | 325 | 565 | 18 | 475 | 1365 | 390 | 600 | 400 | 22 | 3 | 945 |
| 14 | 350 | 875 | 350 | 710 | 20 | 525 | 1585 | 430 | 750 | 455 | 22 | 3 | 1120 |
| 16 | 400 | 1000 | 400 | 870 | 24 | 525 | 1795 | 520 | 880 | 555 | 25 | 4 | 1320 |
| 18 | 450 | 1076 | 425 | 920 | 24 | 600 | 1945 | 480 | 975 | 555 | 25 | 4 | 1420 |
| 20 | 500 | 1075 | 507 | 1200 | 24 | 645 | 2352 | 480 | 1250 | 555 | 25 | 4 | 1777 |
| 24 | 600 | 1410 | 550 | 1215 | 30 | 650 | 2415 | 660 | 1250 | 707 | 25 | 4 | 1820 |

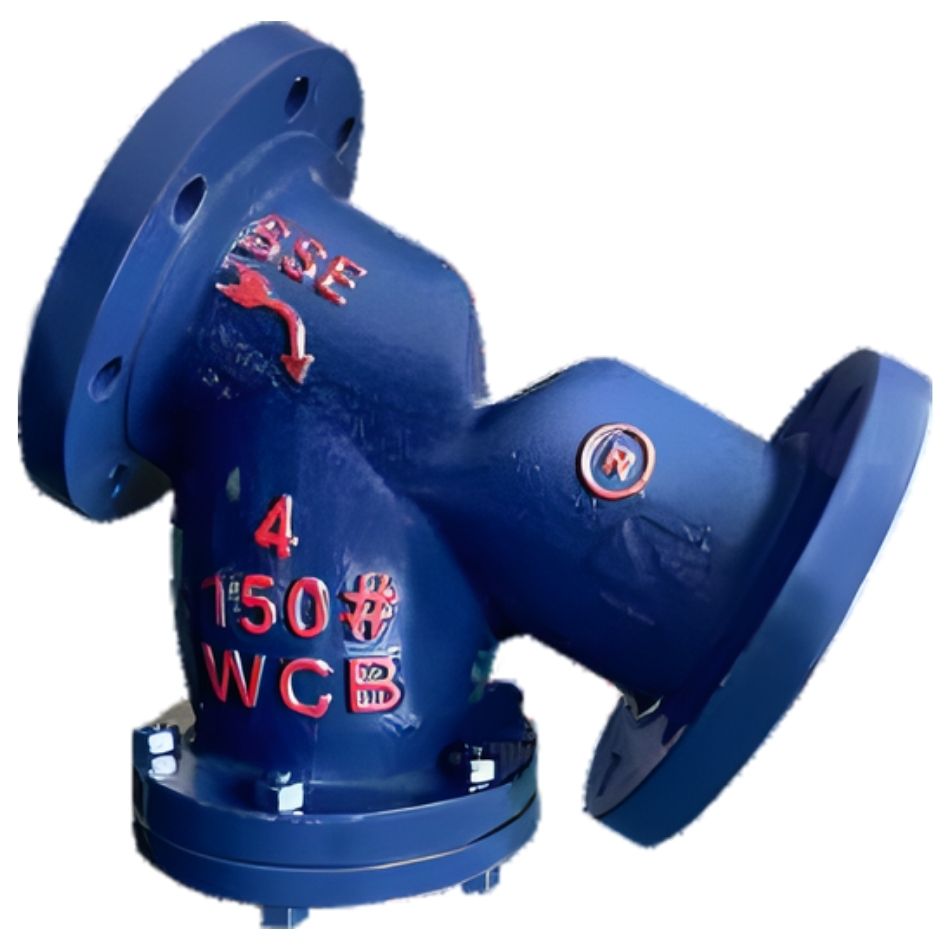

Y TYPE STRAINER
Size 1- 24 Flanged ends, Buttweld ends
Rating 150 to 900
Design Features
Low weight
Compact size
Bottom plug for waste disposal
Low filtration area
Made out of Forged Tee and Flanges
Compact Design
Horizontal or Vertical installations
Large Screening Capacities
Precision Machined seats
Bolted Cover with Blow off drain connections
| MATERIAL OF CONSTRUCTION | ||||
|---|---|---|---|---|
| No. | Description | Material | Qty | |
| 1 | Body | SA 234 Gr. WPB A403 Gr. WP304 A403 Gr. WP 316 | 1 | |
| 2 | Body Flange | ASTM A 105 A182 Gr. F 304 A182 Gr. F 316 | 1 | |
| 3 | Cover Flange | ASTM A 105 A182 Gr. F 304 A182 Gr. F 316 | 1 | |
| 4 | Element | SS 304 SS 316 | 1 | |
| 5 | Cover Gasket | SS 304 SS 304 | 1 | |
| 6 | Stud Nut | ASTM A 193 A194 Gr. B7 2H Zinc Plated | - | |
| 7 | Vent | ASTM A 105 A182 Gr. F 304 A182 Gr. F 316 | 1 | |
| 8 | Handle | SS 304 SS 316 | 1 | |
