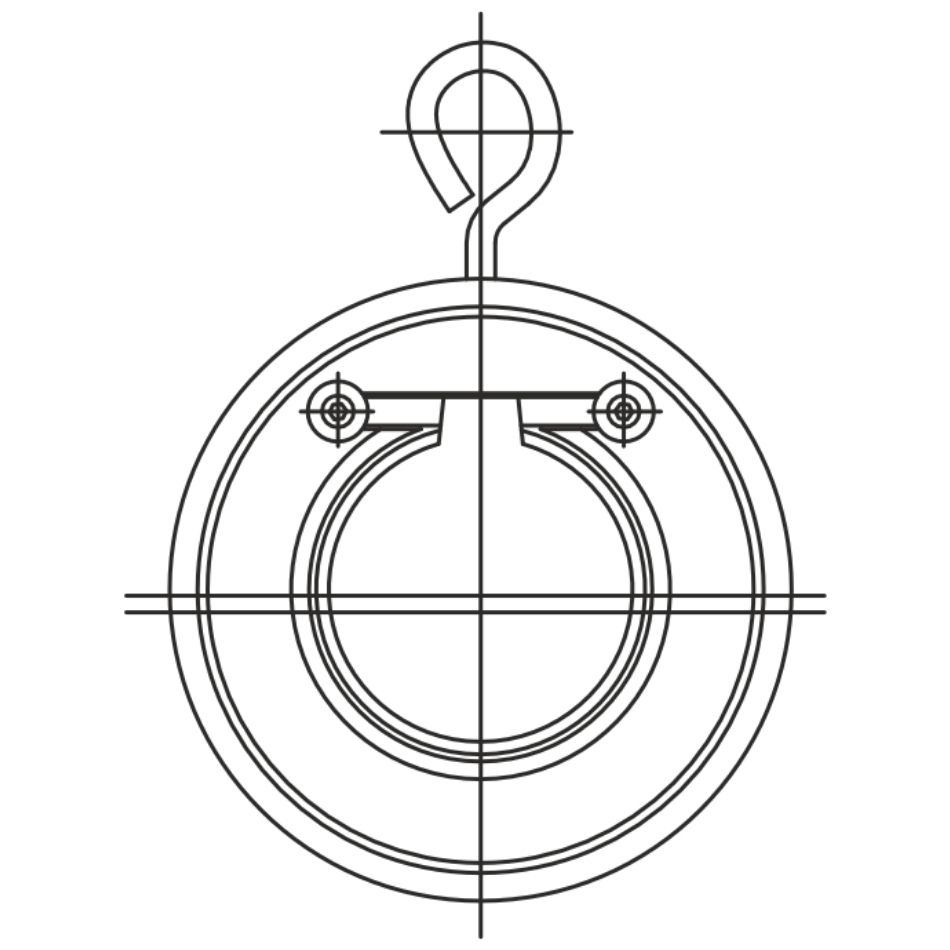

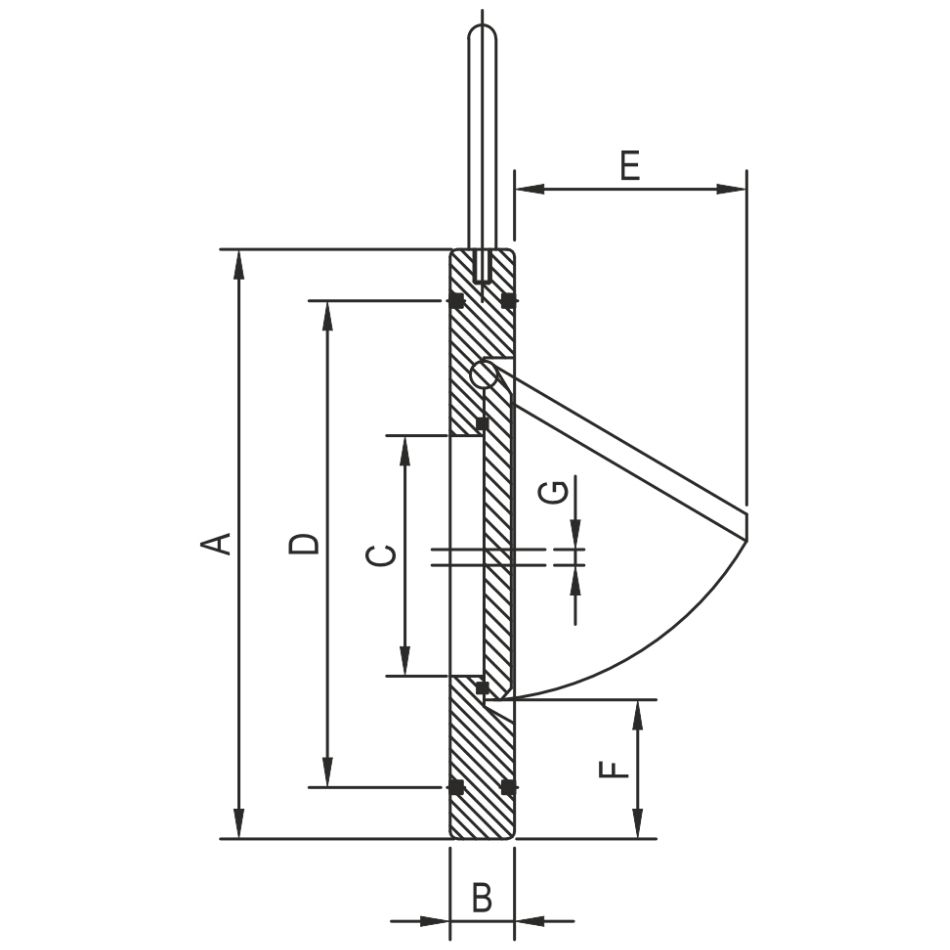

Single Plate
Check Valves
Size 2 to 24
Design Features
With or w/o spring design
Large angle of opening
Easy maintenance and long life
Product Specifications
Single plate check valve DN32-600
Working pressure PN10/16
Maximum temperature -10° C to +80°C
Suitable for water, Sewage and Natural liquid
| STANDARD MATERIALS | |
|---|---|
| PART | MATERIAL |
| Body | MS SS304 |
| O Ring | EPDM |
| Disc | SS304 SS316 |
| O Ring | EPDM |
| Eye Bolt | M.S. Ss304 |
| Gasket | SS304 |
| Screw | SS304 |
| DESIGN SPECIFICATIONS | |
|---|---|
| ITEM | APPLICABLE STD |
| Design | EN1074-3 |
| Flange | EN1092-1 |
| Face to face | EN558-1 |
| Test | EN12266-1 |
